    [Kaptain G] Changes between prototype and pre-production

    We have started this brand new FPV goggles project since Aug 2016 and made our prototype in Jan 2017.

    With this prototype we conducted some tests and participated in exhibitions & events.

    We applied what we have learned through this experience to pre-production model of Kaptain G.


    Here are some changes we have made to our pre-production model:

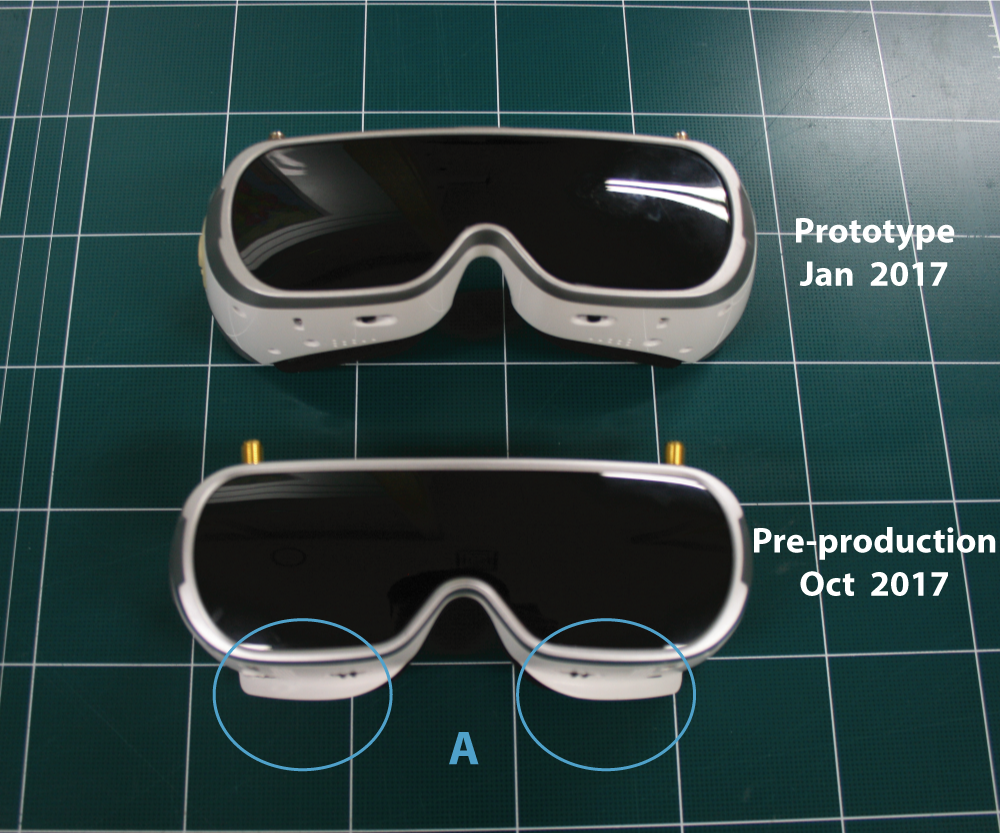

    A - Face support units: For your comfort of wearing.


    B - Head band clip: To replace straps without disassembling.

    C - Optics: Moved forward for bigger FOV.

    D - Diopter slides: For corrective lenses for near-sighted pilots.


    E - Power button: Increased its size with LED lighting.

    F - Ventilation holes: Increased numbers for efficient air circulation.

    G - Channel buttons: Increased size and changed function. (e.g. Long press to change bands)

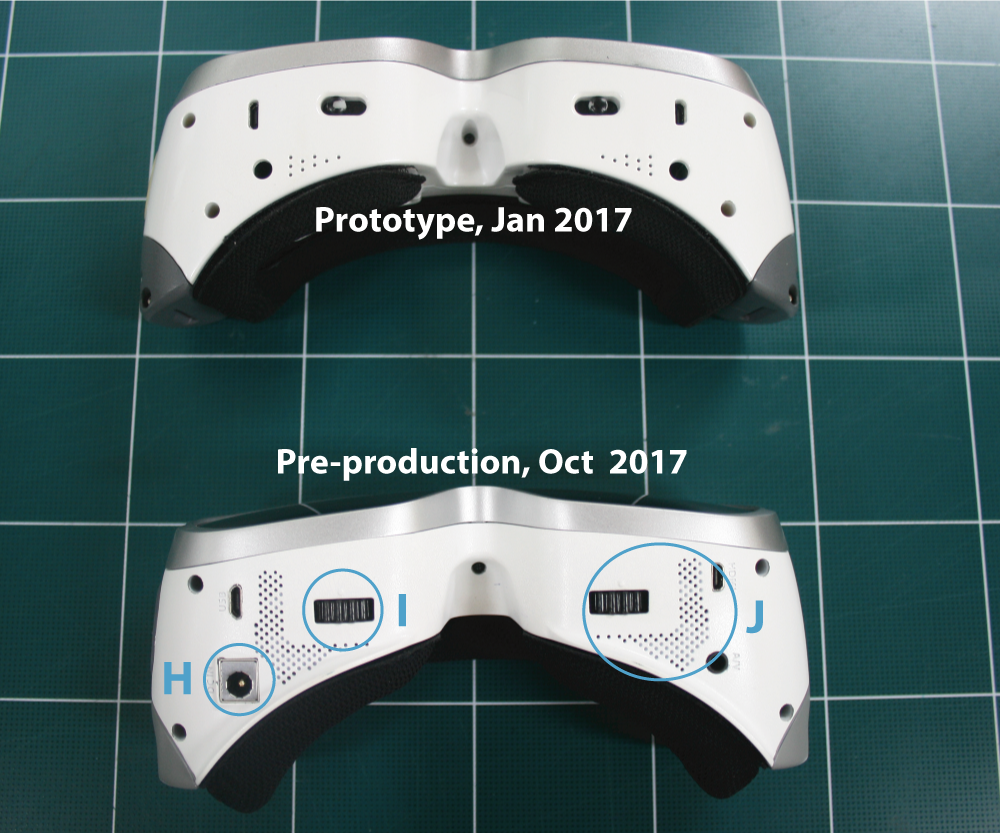

    H - DC Port: Diameter of the port changed from 3.5mm to 5.5mm for compatibility.

    I - IPD: Changed to gear-type.

    J - Ventilation holes: Increased numbers for efficient air circulation.

    ๋Œ“๊ธ€ 1๊ฐœ
    ๋‹ซํž˜
    0
    kerrykalls86
    2017๋…„ 11์›” 3์ผ

    I am very impressed with the changes and updates. How are you determining who receives the most recent pre-production units for evaluation in the fpv community?
